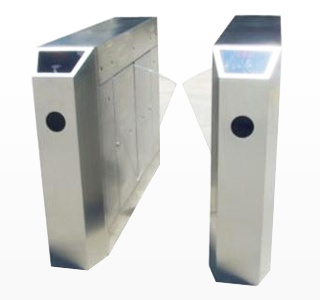

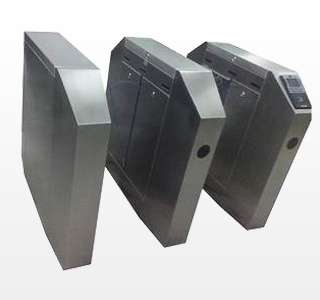

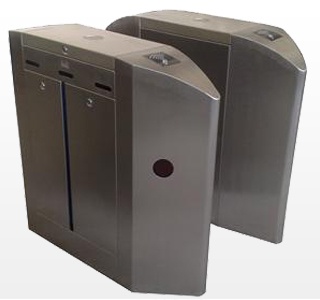

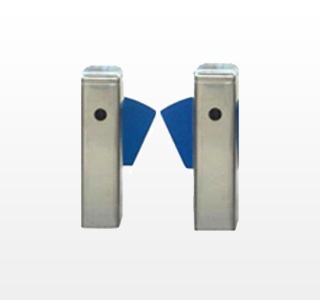

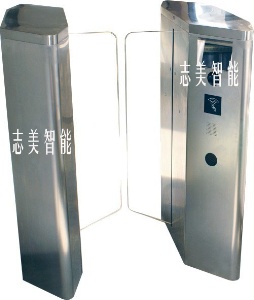

The device uses Chi Mei company developed a new generation of high-speed mute anti trailing wing gate movement, made of soft door wing, marble machine cover, industrial grade ARM720 main control board, the security level is the AAA level, the switching speed of less than 0.2 seconds, can effectively prevent the trailing channel gate, is the industry's top technical, ahead of peers.

Main functions and features

1) has a fault and alarm function, convenient user maintenance and use, can set the parameters of remote gate, remote detection gate operational parameter of state;

2) remote programming on-line the running state of the equipment;

3) 16 kinds of work modes available for selection, and its conversion operation;

4) having a card memory function, users can set their own controlled export repeatedly read card or single read card;

5) can automatically on traffic direction of the passage number statistics, and intuitive LED display to the managers, so that the management of a number of direction;

6) human traffic indication function, display the current state of equipment to pedestrian traffic;

7) with automatic reset function, pedestrian reading effective card, if not accepted within the prescribed time, system will automatically cancel the user the access permissions;

8) have reliable safety protection measures;

9) with power automatic switching off function, in order to meet the demand of fire passage;

10) with a unified standard external electrical interface, and a variety of card reader hanging, and through the management of computer in remote control and management;

11) the whole system running smooth, low noise, no mechanical shock.

Main technical parameters

1) power supply voltage: AC220 + 10% V, 50HZ

2): driving motor brushless DC motor 140W / 24V

3) motor speed: 1600 rpm

4) work environment temperature: - 60 - 15OC OC

5) relative humidity: relative humidity 90%, no condensation

6) input interface: 12V level signal or pulse width > 100ms 12V pulse signal

The drive current > 10mA

7) communication interface: RS485 electrical standards,

8) the communication distance: = 1200 metres

9) the largest channel width: < 600mm

11) is current speed: 30-60 / min

12) the gate size: 1380 * 300 * 1000 width (mm )

13) opening speed for 0.2 seconds

14) and trailing ability: AAA

15) the security level : grade AAA

16) reverse into ability: AAA

17): running noise less than 40 decibels

18) no failure number: 5000000

19) life: about 5-8 years

20) the energy consumption index: environmental protection and energy saving type

21) de-energized passage way: Free
